Description
Rugged hardware for tough jobs

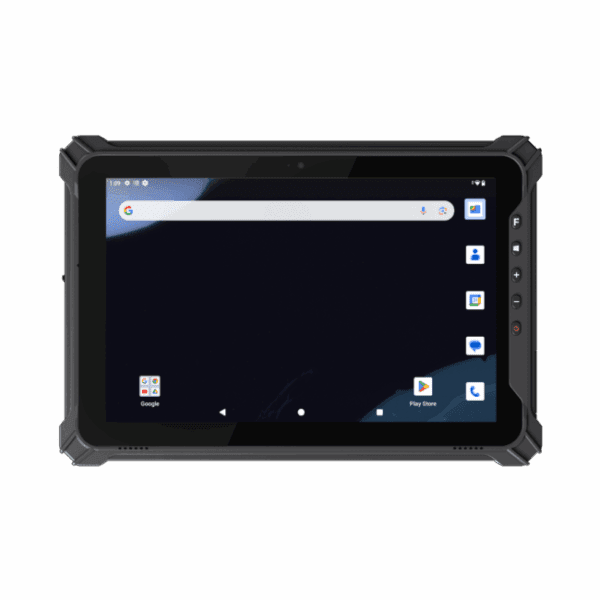

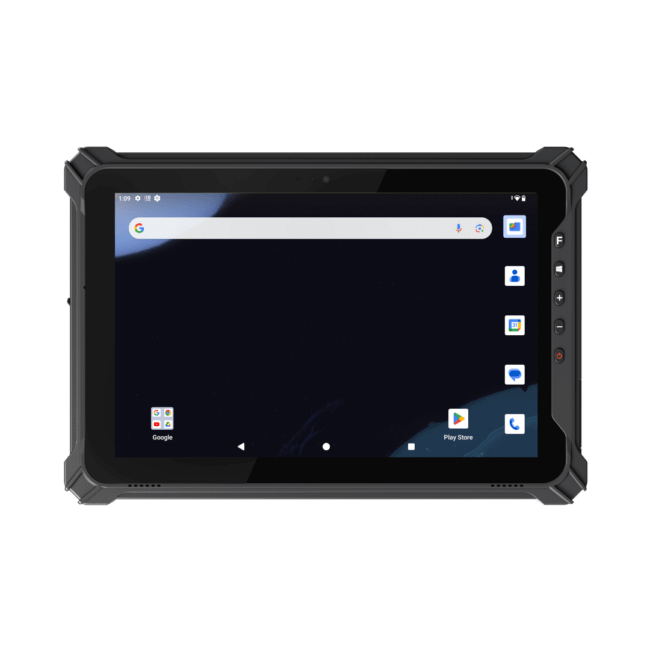

Whether in industry, logistics or trade – the rugged tablets in the Rocktab S500 series are the perfect products for tough jobs. They can be used anywhere and deliver top performance under demanding conditions. The Rocktab S510 is your reliable companion, as it is ruggedly built and equipped with sufficient power for all standard processes.
Ready for professional use
The Rocktab S510 can cope with any environment it encounters, withstanding drops and dust as well as rain, extreme heat and freezing cold. It is temperature tested to military standard MIL-STD-810H from -20° C to +60° C and can withstand drops or accidental drops up to 1.2 meters. Certified to IP65, it offers maximum protection against dust, dirt and water ingress.
Destined to be a rugged all-rounder
Despite its rugged design, the Rocktab S510 is surprisingly easy to use. The bright 10″ display with scratch-resistant multi-touch screen enables intuitive use, both indoors and outdoors. With a depth of just 20 mm, it is also extremely compact and handy.
A modern package with Android 14 operating system
The Rocktab S510 is packed with power and technology. With a MediaTek Helio G99 8-core processor, it offers the performance you need for your work with long battery life thanks to the modern Android 14 operating system. It offers cutting-edge features, optimal customizability, numerous security and privacy features and access to thousands of applications via the Google Play Store. With 8 GB of RAM, smooth operation is guaranteed at all times, even with more complex processes. 128 GB of memory provides enough space for the apps, images and documentation you need for your work. The memory can be expanded by an additional 512 GB using a micro SD card.
Loaded with functions that make your work easier
Rocktab S510 offers proven technologies to ensure stable connectivity for indoor and outdoor use. Rocktab S510 already comes in the standard configuration with USB ports, front and rear camera, 4G LTE mobile data, GPS for fast location and navigation, NFC, Bluetooth and Wi-Fi 5. An optional 1D/2D barcode scanner supports your employees in logistical processes with a secure and simple scanning process.
Long-lasting power supply and optional docking station
Thanks to the 38 Wh battery and Android 14, the Rocktab S510 tablet offers a battery life of up to 12 hours. This increases productivity without the need for frequent intermediate charging, meaning that a spare battery is no longer necessary in some application scenarios. A stationary docking station and a vehicle docking station are optionally available. These charge the tablet and add USB ports, a LAN port and a serial interface to the product, making it even more versatile for industrial applications.
Rocktab S510 Android apps included in the scope of delivery
- Kiosk Mode: allows users to access only predefined applications, blocking access to other functions or apps on the device. This ensures that the device is only used for its intended purpose. Authorized administrators can control and configure the kiosk app.
- Key Mapper: It enables the reassignment of key functions and input devices. Users can customize the default mapping of keys to perform specific actions and commands. They also have the option of defining key combinations and macros and configuring mouse movements, controller buttons or touchscreen gestures to make work processes more efficient.
- Barcode scanner app: Configures the barcode scanner. This allows the settings and parameters of the scanner to be adjusted and its functionality to be optimized.
Technical Specifications
| Physical characteristics |
|
| Dimensions | 275 x 188 x 23 mm |
| Weight | 1.14 kg |
| Housing | Black, non-slip |
| Battery | Replaceable 38 Wh (3.8 V / 10,000 mAh) lithium-ion battery, runtime up to 12 hours |
| Input voltage | 12V DC / 3A max. charging current |
| Buttons | Power button, volume keys, 2 function keys, Home key |
| Status indicators | 1 x power LED, 1x charging status LED |
| Operating temperature | -20° C – +60° C |
| Storage temperature | -30° C – +70° C |
| Air humidity | 95%, non-condensing |
| Sealing | IP65 dust and waterproof |
| Vibrations | MIL-STD-810H 514.8 |
| Drop resistance | 1.2 m according to MIL-STD-810G |
| System features | |
| Operating system | Android 14 |
| Processor options | Mediatek® Helio G99 8-core processor (Up to 2.2 GHz) |
| System memory | 128 GB |
| Working memory | 8 GB LPDDR4 |
| Display | 10.1″ IPS LCD display, 16:10, 400 cd/m2 brightness, 1920×1200 pixel resolution |
| Touchscreen | Capacitive multi-touchscreen with 10 touch points, Corning Gorilla Glass 3 |
| I/O | USB 3.0, USB 3.0 type C, Micro SDXC, Nano SIM, docking port, headset jack |
| Expansion Slot | Ethernet port (standard), RS232 or USB 3.0 |
| Connectivity |
|
| WLAN | Wi-Fi 5 (802.11ac) |
| WWAN | 4G LTE Highspeed Internet up to 400 MBps Download LTE FDD: 1, 2, 3, 4, 5, 7, 8, 17, 20, 28a, 28b; TDD: 38, 39, 40, 41N (2535-2655 MHz); GSM: 2, 3, 5, 8; WCDMA: 1, 2, 5, 8 |
| Bluetooth | Bluetooth 5.2 |
| Ethernet | 1 x RJ45 10/100/1000 Mbit/s LAN (expansion slot) |
| Multimedia |
|
| Audio | 2 x Integrated speaker, integrated microphone, 3.5 mm headset jack |
| Camera | 5 MP front camera, 13 MP rear camera with flash |
| Data collection |
|
| NFC* | ISO/IEC 14443 A/B, conformity with IEC 15693/18092 |
| Barcodescanner* | Optional 1D/2D barcode scanner
■ Short range up to 38 cm reading distance |
| Further specifications |
|
| Innovative feautres | Kiosk Mode, Setting Extension, Key Mapper, Broadcast Receiver, OTA Updater |
| Position detection | GPS, Galileo, GLONASS, BeiDou |
| Sensors | Tilt sensor |
| Accessories included | Power supply, USB cable |
| Optional accessories | See accessories catalog |
| Warranty | 2 years warranty, extended warranty available |
