Description
Rugged. Protected. Resistant.
More than just a powerful embedded computer, the Rocksmart RSX2000’s compact design, MIL-STD-810G vibration rating, and passive cooling make it the ideal partner for demanding applications in machinery, vehicles, and mobile systems. The fanless design ensures not only maintenance-free operation, but also quiet operation without additional downtime or maintenance costs. The Rocksmart RSX2000 embedded computer is specifically designed for machine building and use in harsh industrial environments. With its IP67-rated housing, this box PC offers reliable protection against dust, water and other harsh conditions. Ideal for machine control or use in the manufacturing and automation industries, the Rocksmart RSX2000 combines rugged performance and durability.
Powerful edge computing
Equipped with a 13th generation Intel® Core™ i5 processor (Raptor Lake), the Rocksmart RSX2000 delivers high performance for the most demanding manufacturing automation and process control applications. Combined with up to 64GB of RAM and a 2TB NVMe SSD, the box PC ensures stable and fast performance even for data-intensive applications. With its versatile interfaces, the Rocksmart RSX2000 simplifies integration into existing control and drive systems – ideal for reliable monitoring of acceleration or temperature sensors in robotic applications.
Flexible connectivity for customized machine engineering solutions
The Rocksmart RSX2000 embedded computer offers a wide range of connectivity options to meet industrial requirements:
- 3× USB 3.0 for fast data transfer, one of which is USB-C
- 2× Ethernet for fast network connections
- 1× RS232/422/485 for serial communication
- 1× DisplayPort for external monitors
Fieldbus and real-time Ethernet protocols can be customized for specific applications. This allows the Rocksmart RSX2000 to be precisely tailored to your machine control and automation processes. In addition, numerous other interface adaptations are available, including CAN-Bus, 4G, 5G, WLAN, Bluetooth, RS232, and RS485. This means the embedded computer adapts to your needs, not the other way around.
Versatile operating systems for industrial applications
The Rocksmart RSX2000 supports multiple operating systems for seamless integration into existing industrial systems. Windows 10 IoT Enterprise LTSC, Windows 11 IoT Enterprise LTSC, Windows 11 Pro, and Ubuntu Linux 22.04 are available, giving you the flexibility to meet your industrial needs.
Can be used across industries
- Machine & plant engineering
- Robotics
- Vehicle & rail technology
- Chemical & food industry
- Energy & utilities
No matter what industry you work in, the Rocksmart RSX2000 offers not only outstanding performance and reliability, but also unbeatable value.
Highlights
- Compact rugged industrial PC for machines, vehicles, etc.
- Powerful 13th generation Intel® Core i5 Deca-Core CPU
- Completely passive cooling – no fan!
- High shock and vibration resistance according to MIL-STD-810G
- Fully dustproof and waterproof IP67 housing
- Insulated interfaces via screw connections for maximum vibration resistance and protection
- High adaptability for perfect project integration with low minimum order quantities
- 128 GB to 1 TB M.2 NVMe system storage, 2nd SATA SSD hard drive up to 8 TB
- Up to 64 GB DDR5 RAM
- Outstanding Intel® Iris® Xe graphics
- 3 x USB 3, 2 x Ethernet, 1 x RS232/422/485, 1 x DisplayPort
- Fieldbus and real-time Ethernet protocols can be integrated on a project basis
- Input voltage range 12–24 V
- High operating temperature range
- Supported operating systems Windows 10 IoT Enterprise LTSC, Windows 11 IoT Enterprise LTSC, Windows 11 Pro, Ubuntu Linux 22.04
- TPM 2.0 integrated – hardware-based tamper protection
- Includes connection cable and mounting kit for wall mounting
Technical Specifications
| General housing characteristics | |
|---|---|
|
Housing
|

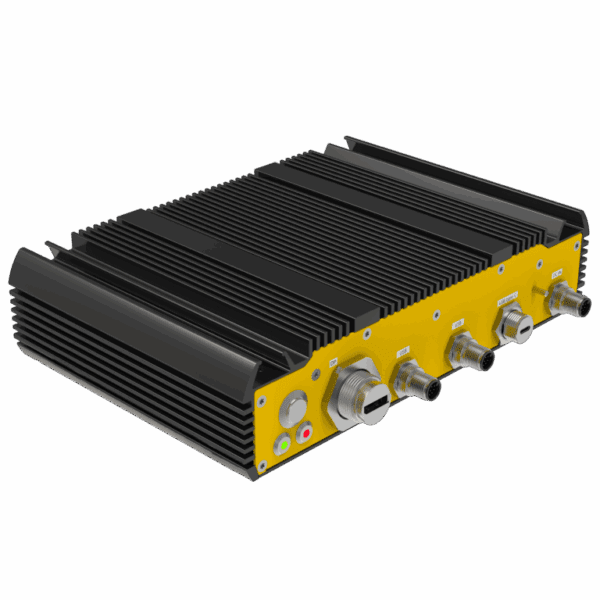

Closed, robust aluminum housing, yellow front and rear, cooling fins, fanless, waterproof screw connections
|
|
Dimensions
|
256 x 170 (209) x 58 mm
|
|
Sealing
|
IP67
|
|
Operating temperature
|
■ 0° C – +60° C ■ -40° C – +85° C*
|
|
Storage temperature
|
-40° C – +85° C
|
|
Vibration resistance
|
3.5 Grms
|
|
Humidity
|
95%, non-condensing
|
|
Input voltage
|
DC 12V~24V ± 10%
|
|
Weight
|
2,59 kg (net), 5 kg (total)
|
|
Keys
|
Power Button
|
|
Status indicators
|
1 x Power LED, 1 x HDD LED
|
| System characteristics | |
|---|---|
|
Operating system
|
Windows 10 IoT Enterprise, Windows 11 IoT Enterprise, Windows 11 Pro (Standard), Ubuntu Linux, Yocto BSP
|
|
Processor options
|
■ Intel® Core i5-1345UE ■ Intel® Core i3-1315UE* ■ Intel® Prozessor U300E*
|
|
Graphics processor
|
■ Intel® UHD Graphics
|
|
System memory
|
■ 128 GB to 2 TB M.2 PCIe Gen 4 NVMe ■ SATA Gen III SSD up to 8 TB*
|
|
Working memory
|
■ 4 to 64 GB DDR5 4800 MHz
|
| Connections in standard configuration³ | |
|---|---|
|
Electricity input
|
DC-In
|
|
Serial ports |
■ 1 x RS232/422/485
|
|
USB
|
■ 2 x USB3.2 Gen2x1 10 Gbps (Typ A) ■ 1 x USB 3.2 Gen2x1 10 Gbps, DisplayPort 1.4 Alt Support (Typ C)
|
|
RJ45
|
■ 2 x RJ45 (1 x Gbit, 1 x 2,5 GBit)
|
|
Monitor output (maximum resolution: 4096×2160@60Hz)
|
■ 1 x DisplayPort 1.4
|
| Optional features | |
|---|---|
|
WLAN / Bluetooth*
|
Intel AX210 Tri-Band WiFI6E WLAN with Bluetooth 5.3
|
|
WWAN*
|
4G LTE high-speed Internet up to 300 Mbps download, 50 Mbps upload; DFOTA support, DTMF support, MIMO, variants available for different regions (EMEA/Australia/Brazil Standard)
|
|
Boot on Power
|
Switch on the computer as soon as it receives power.
|
|
Additional connections & functions³*
|
5G WWAN FRMCS-fähig³, GPS, LoRaWAN, Hailo-8 Edge AI-Beschleunigung, CAN-Bus/CANopen, DeviceNet, Profibus, CC-Link IE Field Basic, EtherCAT, POWERLINK, Modbus, PROFINET, Sercos, Varan, OPC UA, MQTT
|
| Further specifications | |
|---|---|
|
Innovative Features
|
Gauss and Neural Accelerator 3.0, Thread Director, Image Processing Unit 6.0, Speed Shift Technology, Hyper-Threading Technology, Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2, Temperature Monitoring, Flex Memory Access, Volume Management Device (VMD)
|
|
Security Features
|
Watchdog timer, AES New Instructions, Boot Guard, Directed I/O virtualization technology (VT-d), OS Guard, TPM 2.0, virtualization technology (VT-x)
|
| Other | |
|---|---|
|
Included accessories
|
External 110-240VAC power supply, mounting bracket
|
|
Optional accessories
|
See accessories catalog
|
|
Warranty
|
2-year warranty, extended warranty available
|
