Description
FAST.
PRECISE.
HANDS-FREE.
Industrial and logistics workers need to scan many bar codes every day. In these industries, it is important to work quickly, accurately and efficiently to ensure productivity and customer satisfaction. The Rockscan W100 handheld barcode scanner and its all-purpose glove set new standards for efficient and flexible scanning.
Traditional barcode scanners require workers to hold and operate the devices, which can lead to an inefficient workflow. The Rockscan W100 all-purpose Glove Kit solves these problems. In a world where time savings and accuracy are critical, this innovative device offers a solution to the challenges of the traditional barcode scanning process.
Industry-leading barcode scanners
Data is captured using high-end sensors that capture all common 1D and 2D barcodes quickly and reliably. In addition to high ergonomics and performance, the Rockscan W100 also offers durability and robustness. With IP65 protection, the scanner is protected against water and dust and can withstand drops from up to 1.5 metres onto concrete and more than 2,000 drops from a height of 1.2 metres. It therefore far exceeds the requirements of the MIL-STD-810G military standard. With 5,000 scans per charge, the Rockscan W100 is an ideal companion for the whole day. If this is not enough, the battery can be replaced in just a few seconds.
Comfortable to wear all day long

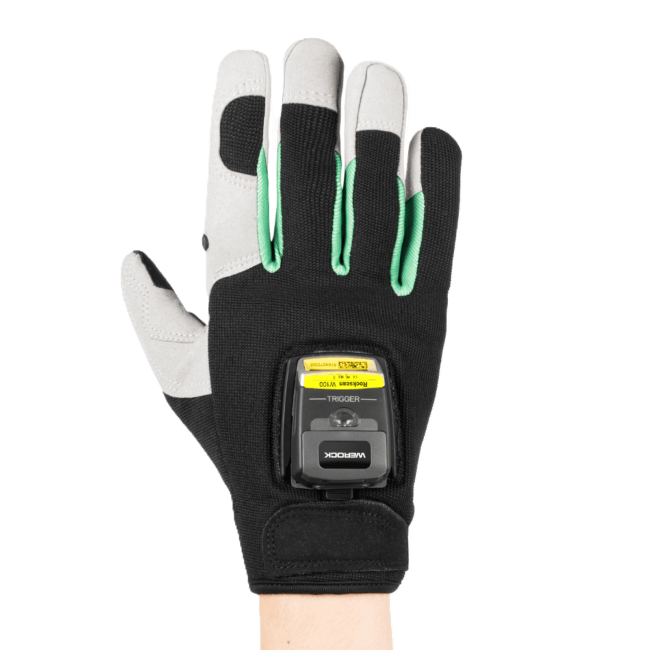

Designed for all-day comfort, the all-purpose-Glove offers a soft, comfortable fit with extra padding in the palm. It features a convenient trigger between the thumb and index finger for easy activation, enabling ergonomic, hands-free scanning for efficient operation throughout the workday. In addition, the glove, scanner and battery can be changed quickly to ensure a smooth workflow without major delays.
The all-purpose glove is supplied in pairs.
Scanning without limits
Designed for all-day comfort, the all-purpose-Glove offers a soft, comfortable fit with extra padding in the palm. It features a convenient trigger between the thumb and index finger for easy activation, enabling ergonomic, hands-free scanning for efficient operation throughout the workday. In addition, the glove, scanner and battery can be changed quickly to ensure a smooth workflow without major delays.
Reduce costs, speed up processes
Save time, money and nerves. Choose the Rockscan W100 all-purpose handheld barcode scanner and speed up your employees’ scanning processes, reduce errors and increase efficiency – for a quick return on investment and high value-added for your business.
Ready for harsh environments
- Retail: Receiving, inventory tracking and point-of-sale transactions where fixed in-counter scanners are not practical (e.g. DIY stores)‘
- Transport & logistics: parcel tracking and warehouse management
- Warehousing & distribution: warehouse management, goods receiving, picking, retrieval, sorting, loading
- Manufacturing: Inventory management, stock replenishment, parts and finished goods tracking, sorting, assembly, finished goods inspection
Highlights
- Worfklow booster: Enables simple and fast scanning
- 5000 scans per battery charge
- Quick-change battery with high capacity
- Best-in-class scanning performance – scanning range up to 14m
- Ergonomics: free hands for comfort and flexibility
- Fast return on investment thanks to considerable time savings
- Drastic reduction in error rates thanks to intuitive feedback
- Wireless connection for optimum freedom of movement.
- Significant acceleration of scanning processes
- Particularly rugged: withstands 1.5 m drops onto concrete and >2000 drops from a height of 1.2 m
- Exceeds shock, vibration and drop resistance according to MIL-STD-810G
- Ideal for harsh environments as it is waterproof and dustproof to IP65 Innovative accessories
- Scan feedback: acoustic, haptic and visual
- Compatible with all Bluetooth-enabled devices with Bluetooth 4.2 and higher
- NFC Tap to Pair
Technical Specifications
| Wireless communication | |
|---|---|
|
Bluetooth
|
Supports Bluetooth Low Energy 4.2
|
|
Communication
|
Bluetooth HID, SPP, BLE
|
|
Wireless range
|
Free field: 50 m** Indoor range: 25 m**
|
|
Pairing
|
NFC, Tap to pair
|
| Supported barcodes | |
|---|---|
|
1D
|
Code39, Code128, Codabar, Code11, UPC/EAN, 2of5, Databar, Code 93, MSI, UK Plessy, Telepen, Postal Codes
|
|
2D
|
PDF417, Micro PDF, Composite, TLC-39, Aztec, Data Matrix, QR, Maxicode, Han Xin, Grid Matrix, Dotcode²
|
|
OCR-capable
|
yes
|
| Electrical properties | |
|---|---|
|
Battery
|
Replaceable 3.7 V / 550 mAh (2 Wh) lithium-ion battery
|
|
Charging time
|
2 hours
|
|
Input voltage
|
5 V DC / 2 A (max), typ. 300mA
|
|
Operating time
|
Approx. 5,000 scans depending on application and ambient conditions; >30 days standby
|
| System features | |
|---|---|
|
Operating modes
|
Bluetooth (standard), offline mode*, RS232 mode*, USB keyboard*
|
|
Supported systems
|
Android, iOS, Linux, Mac, Windows
|
|
Scan modes
|
Standard, Presentation, Auto Aim
|
| Physical features | |
|---|---|
|
Housing
|
Polycarbonate housing with overmolding (PC+TPU)
|
|
Dimensions
|
57 x 42 x 24 mm
|
|
Weight
|
45 g
|
|
LED
|
Red/blue/green
|
|
Beep
|
Up to 80 dBA @ 10 cm
|
|
Scan triggering
|
Capacitive trigger button, as well as trigger via optional accessories
|
| Environmental conditions | |
|---|---|
|
Drop resistance
|
200 drops from 1.5 m height
|
|
Sealing
|
IP65 Dust and waterproof
|
|
Operating temperature
|
-5° C – +50° C
|
|
Storage temperature
|
-20° C – +60° C
|
|
Humidity
|
95%, non condensing
|
| Scanner features | |||
|---|---|---|---|
|
|
SR
|
HD
|
LR
|
|
Image resolution
|
1280 x 960
|
1280 x 960
|
2688 x 1520
|
|
Max. Field of view
|
H:44,5°, V: 33,5°
|
H:31°, V: 23°
|
H:37°, V: 21°
|
|
Roll tolerance
|
360°
|
360°
|
360°
|
|
Tilt tolerance
|
±60°
|
±60°
|
±60°
|
|
Swivel tolerance
|
±60°
|
±60°
|
±60°
|
|
Ambient light
|
107.639 Lux max.
|
96.900 Lux max.
|
107.639 Lux max.
|
|
Aiming element
|
Green Laser 520 nm
|
Red Laser 655 nm
|
Green Laser 520 nm
|
|
Illumination
|
1 x LED in warm white
|
2 x LEDs in warm white
|
2 x LEDs in warm white
|
