Description
xSTORAGE

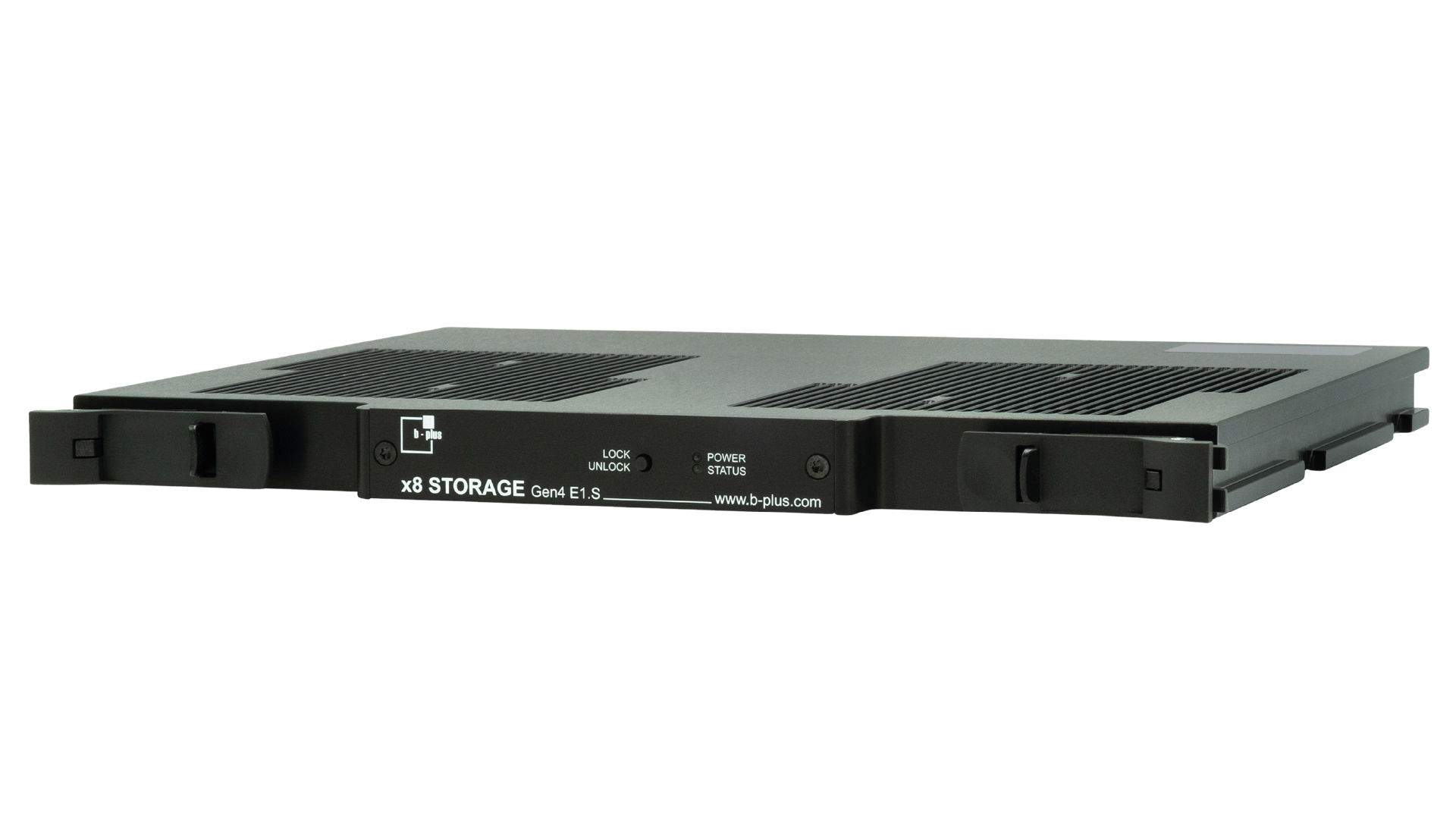

Removable Storage Unit xSTORAGE
powerful storage with sliding mechanism for easy data handling
The xSTORAGE is a removable logging storage system for BRICK and DATALynx measurement and recording systems and ensures fast, efficient and secure data handling. This flexible storage solution, available in a wide range of capacities and variants, adapts seamlessly to any application. The focus of the xSTORAGEs is on user-friendliness, emphasized by a simple sliding mechanism that makes inserting and removing the storage unit uncomplicated. In addition, the hot plug and hot swap capability of the removable storage units enables uninterrupted data exchange. The matching Encryption Manager based on TCG OPAL 2.01 offers highly secure protection against theft and cyber-attacks with its hardware-based encryption technology and ensures compliance with data protection guidelines and other security standards. It offers easy setup, automatic activation and user-friendly management for maximum security.
Why choose xSTORAGE?
Massive storage capacity
Whether you need to capture large amounts of data, perform extensive test drives or store large amounts o measurement data, our storage solutions provide you with the capacity you need. Thanks to the high data throughput, we can ensure fast and efficient processing of your data. Your measurement data is stored securely and is accessible to you whenever you need it.
Compact and robust design
Our removable logging storage is specially designed to withstand the demanding requirements of harsh environments. With its rugged housing, it offers optimal protection for your valuable data, even under extreme conditions. The compact form factor also makes the unit ideal for in-vehicle installation.
Flexible and secure data transfer without downtime
The hot plug and hot swap capabilities of xSTORAGE enable flexible replacement of storage units during operation. This seamless changeover significantly minimizes downtime and enables uninterrupted data exchange. In addition, the xSTORAGE is “encryption ready”, which ensures secure encryption of sensitive data and thus creates a protected framework for your valuable sensor data.
Big Data? No problem!
BRICK STORAGEplus
|
BRICK2 STORAGE
|
BRICK2 STORAGE NVMe
|

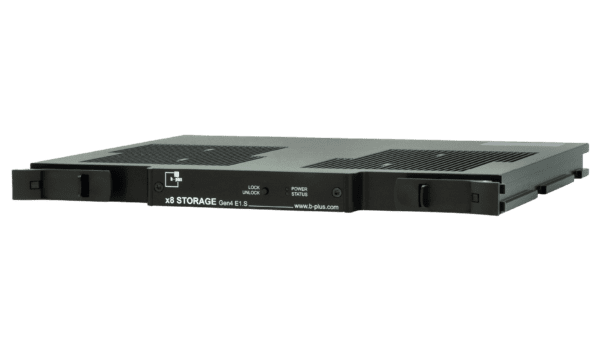

x8 STORAGE – Gen4 E1.S
|
|
|---|---|---|---|---|
PCI Express |
PCI Express 3.0 x4 SATA RAID |
PCI Express 3.0 x8 SATA RAID |
PCI Express 3.0 x8 NVMe JBoF |
PCIe 4.0 x8 NVMe JBoF |
SSD |
8 x SATA SSD, passive cooling |
8 x SATA SSD, passive cooling |
8 x E1.S NVMe SSD, passive cooling |
8 x E1.S NVMe SSD, passive cooling |
Performance |
16 Gbit/s @ATX4 16 Gbit/s @BRICK2 16 Gbit/s @BRICKplus |
24 Gbit/s @ATX4 24 Gbit/s @BRICK2 |
48 Gbit/s @ATX4 32 Gbit/s @BRICK2 |
96 Gbit/s @ATX4 PCIe4 48 Gbit/s @ATX4 PCIe3 32 Gbit/s @BRICK2 |
Storage Capacity |
8 TB 16 TB 32 TB |
8 TB 16 TB 32 TB |
15 TB 30 TB 60 TB |
15 TB 30 TB 60 TB |
Hot Plug |
|
|
|
|
Encryption |
|
|
|
|
Typical Power Consumption |
up to 50 W |
up to 50 W |
up to 109 W |
up to 109 W |
Operating Temperature@ max. performance |
-10 °C to +50 °C (EVO) -20 °C to +70 °C (EXT) |
-10 °C to +50 °C (EVO) -20 °C to +60 °C (EXT) |
-10 °C to +60 °C @ ATX4 -10 °C to +55 °C @ BRICK2 |
-10 °C to +60 °C @ ATX4 -10 °C to +55 °C @ BRICK2 |
Housing |
Solid aluminum housing
280 mm (w) 22 mm (h) 248 mm (d) |
Solid aluminum housing
280 mm (w) 22 mm (h) 248 mm (d) |
Big Data? No problem!
BRICK STORAGEplus
|
BRICK2 STORAGE
|
BRICK2 STORAGE NVMe
|
x8 STORAGE – Gen4 E1.S
|
|
|---|---|---|---|---|
PCI Express |
PCI Express 3.0 x4 SATA RAID |
PCI Express 3.0 x8 SATA RAID |
PCI Express 3.0 x8 NVMe JBoF |
PCIe 4.0 x8 NVMe JBoF |
SSD |
8 x SATA SSD, passive cooling |
8 x SATA SSD, passive cooling |
8 x E1.S NVMe SSD, passive cooling |
8 x E1.S NVMe SSD, passive cooling |
Performance |
16 Gbit/s @ATX4 16 Gbit/s @BRICK2 16 Gbit/s @BRICKplus |
24 Gbit/s @ATX4 24 Gbit/s @BRICK2 |
48 Gbit/s @ATX4 32 Gbit/s @BRICK2 |
96 Gbit/s @ATX4 PCIe4 48 Gbit/s @ATX4 PCIe3 32 Gbit/s @BRICK2 |
Storage Capacity |
8 TB 16 TB 32 TB |
8 TB 16 TB 32 TB |
15 TB 30 TB 60 TB |
15 TB 30 TB 60 TB |
Hot Plug |
|
|
|
|
Encryption |
|
|
|
|
Typical Power Consumption |
up to 50 W |
up to 50 W |
up to 109 W |
up to 109 W |
Operating Temperature@ max. performance |
-10 °C to +50 °C (EVO) -20 °C to +70 °C (EXT) |
-10 °C to +50 °C (EVO) -20 °C to +60 °C (EXT) |
-10 °C to +60 °C @ ATX4 -10 °C to +55 °C @ BRICK2 |
-10 °C to +60 °C @ ATX4 -10 °C to +55 °C @ BRICK2 |
Housing |
Solid aluminum housing
280 mm (w) 22 mm (h) 248 mm (d) |
Solid aluminum housing
280 mm (w) 22 mm (h) 248 mm (d) |

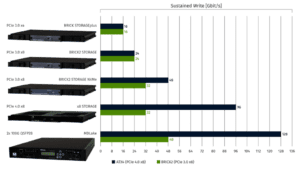

xSTORAGE Sustained Write Overview:
Complete your setup
Order information
Order information xSTORAGE – Gen3
| Name | Order number |
| BRICK2 STORAGE NVMe | B17049-B2S-20x-xxxx |
| x8 STORAGE – Gen3 E1.S | B17102-8S3-10x-xxxx |
Order information xSTORAGE – Gen4
| Name | Order number |
| x8 STORAGE – Gen4 E1.S | B17102-8S4-10x-xxxx |
Protect your data!
Disk Encryption
Disk Encryption
Complete protection for sensitive data
The xSTORAGE removable storage units offer encryption technology that is specially designed to comprehensively protect your sensitive data. On the one hand, this encryption is becoming increasingly important considering the constantly growing legal requirements of global data protection regulations such as the GDPR. On the other hand, hackers and other criminals are constantly developing new methods to gain access to unsecured data. In our digitalized world, data is increasingly becoming the target of cyberattacks. The encryption technology of xSTORAGEs creates reliable protection by ensuring that data in an encrypted state becomes unreadable and therefore worthless to third parties.
Password-protected encryption for mobile storage devices
A key feature of the Encryption Manager is the ability to assign a password when setting up the encryption, which enables or disables it. This function is particularly useful as it takes effect automatically as soon as the storage unit is disconnected from the host system or switched off. This mechanism is particularly valuable in mobile applications where there is a risk of storage devices being lost or stolen. This ensures that the data is not only secure during operation, but also when the device is at rest. The password creates a security barrier that effectively prevents unauthorized access to your data by third parties and therefore contributes to data security.
Simple setup and management for maximum data security
Our encryption offers you a user-friendly solution that combines security and simplicity. It is specifically designed to be easy for users to set up and manage. The simple setup is supported by an intuitively designed web interface that allows users without in-depth technical knowledge to effectively configure and customize the encryption settings. We also offer users the option of automating all functions using the implemented command line interface and implementing them via scripts.
Full write performance thanks to hardware support
The technology developed in accordance with the OPAL standard of the Trusted Computing Group (TCG) is deeply integrated into the mass storage devices used and offers AES-256 encryption on a hardware basis. This means that there is no loss of sustained write speed to the xSTORAGE storage units with simultaneous encryption.
