MDILink

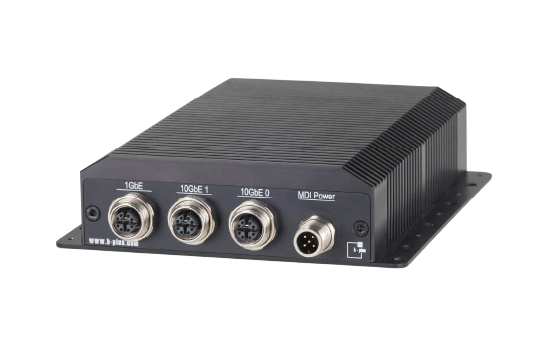

Measurement Data Interface MDILink
SerDes data converter for decoupling of raw sensor data
In the ADAS/AD sector, measurement data converters are always used when you need to decouple raw data from different sensor systems such as cameras, radar or lidar. As a SerDes data converter, the MDILink offers you a seamless solution that enables the transition from development to series production. The sensor data can be analyzed using measurement technology platforms and integrated into other modules of the AD Validation Toolbox. Thanks to the support of common interfaces such as GMSL, FPDLink and CSI-2, the MDILink is compatible with different technologies. The integration of the ASAM CMP (Capture Module Protocol) standard in all MDILink measurement data interfaces ensures that communication and measurement data from different sources are formatted, transmitted and stored in a standardized way. This enables seamless compatibility and easy integration into test and measurement environments.
Why choose MDILink?
Key Features
Reliable Data
With our MDI technology, we specialize in decentralized data acquisition from sensors, the conversion and exact time stamping of data from synchronized clocks, and the subsequent transfer via Ethernet standard to the data recorder.
2-in-1 device
The measurement data interface offers a conversion to 10Gbit Ethernet as well as transparent decoupling of the raw data stream in TAP mode.
Customization made possible
The MDILink is available for many standardized interfaces, such as GMSL, CSI-2 and FPD-Link. Not the right fit? Thanks to the modular concept, a flexible adaptation to different interfaces and data formats is easily possible. But also, data compression, conversion and encryption can be adapted to individual requirements. In addition, b-plus will gladly perform the physical adaptation to the selected sensor chip for you.
Which MDILink is right for you?
Base System
GMSL2 TAP
|
GMSL2 4EP
|
GMSL2 STP
|
FPD-Link III
|
CSI-2
|
|
|---|---|---|---|---|---|
Communication Standard |
2x GMSL2 Input (RX) MAX96716 Deserializer 2x GMSL2 Output (TX) MAX96717 Serializer |
4x GMSL2 Input (RX) MAX96716 Deserializer |
2x GMSL2 Input (RX) MAX96716 Deserializer 2x GMSL2 Output (TX) MAX96717 Serializer |
2x FPD III Input (RX) DS90UB954-Q1 Deserializer 2x FPD III Output (TX) DS90UB953-Q1 Serializer |
2x CSI-2 Input (RX) Deserializer 2x CSI-2 Output (TX) Serializer |
Ethernet Download Ports |
2x 10GbE Dataport |
2x 10GbE Dataport |
2x 10 GbE Dataport |
2x 10 GbE Dataport |
2x 10 GbE Dataport |
MGMT Port Ethernet |
1x 1GbE |
1x 1GbE |
1x 1 GbE |
1x 1 GbE |
1x 1 GbE |
|
Time SynchronizationIEEE1588 802.1AS |
|
|
|
|
|
Protocol |
ASAM CMP RX-API (b-plus protocol) |
ASAM CMP RX-API (b-plus protocol) |
ASAM CMP RX-API (b-plus protocol) |
ASAM CMP RX-API (b-plus protocol) |
ASAM CMP RX-API (b-plus protocol) |
Operating Temperature |
-25 °C to +70 °C |
-25 °C to +70 °C |
-25 °C to +70 °C |
-25 °C to +70 °C |
-25 °C to +70 °C |
Power Supply Sensor |
PoC (Power over Coax) |
PoC (Power over Coax) |
N/A |
PoC (Power over Coax) |
N/A |
Supply Voltage |
8 V – 32 V 6,5 V crank-safe |
8 V – 32 V 6,5 V crank-safe |
8 V – 32 V 6,5 V crank-safe |
8 V – 32 V 6,5 V crank-safe |
8 V – 32 V 6,5 V crank-safe |
Power Consumption |
15 W typ. 25 W max. |
15 W typ. 25 W max. |
15 W typ. 25 W max. |
15 W typ. 25 W max. |
15 W typ. 25 W max. |
Housing |
140 mm (w) 38 mm (h) 159,7 mm (d) |
140 mm (w) 38 mm (h) 159,7 mm (d) |
140 mm (w) 38 mm (h) 159,7 mm (d) |
140 mm (w) 38 mm (h) 159,7 mm (d) |
140 mm (w) 38 mm (h) 159,7 mm (d) |
Approvals |
CE, FCC, VCCI, RoHS, REACH |
CE, RoHS, REACH |
