Description
b-ISOBUS Cable

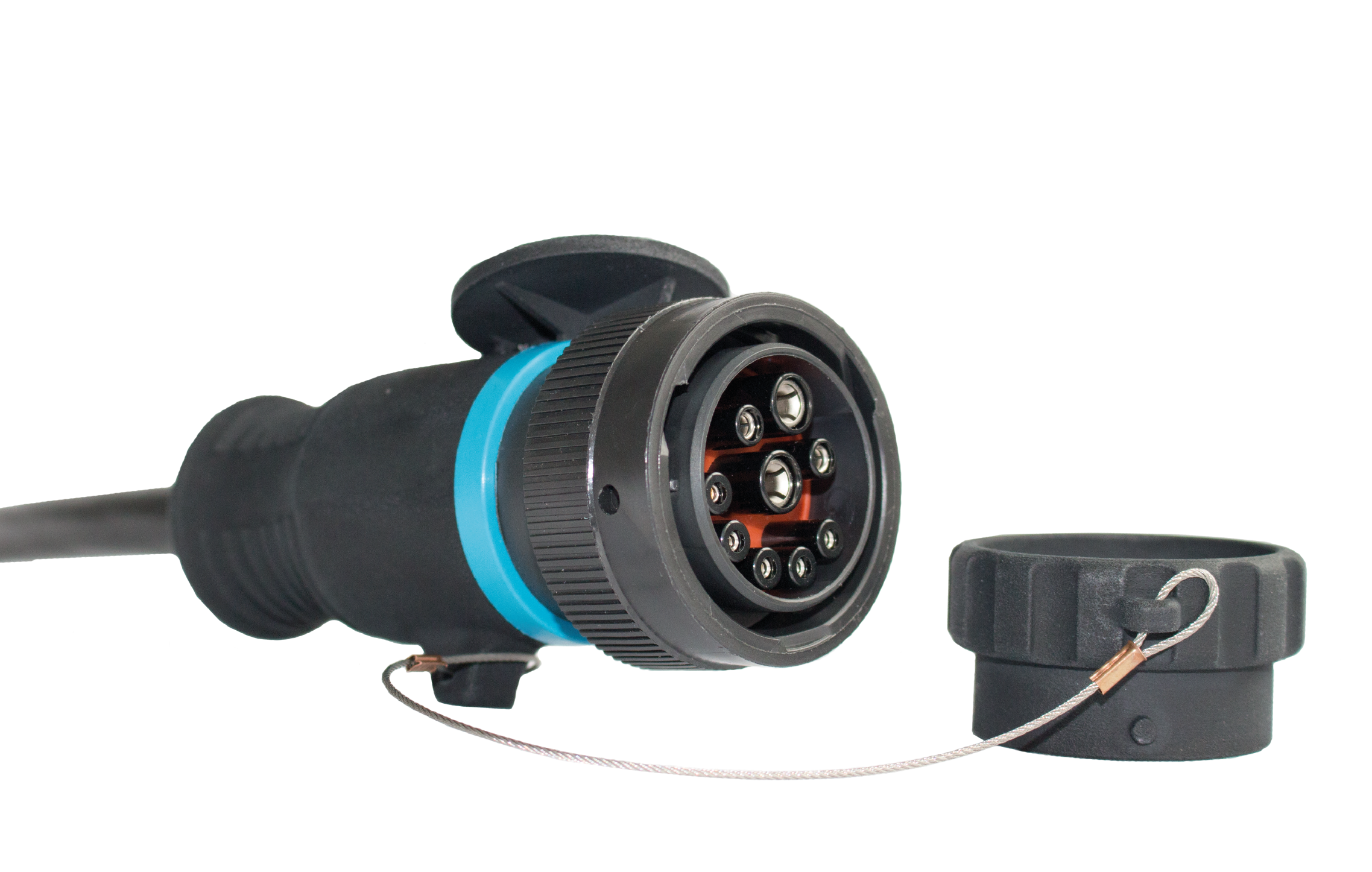

Connection cable b-ISOBUS Cable for ISOBUS implements
The b-ISOBUS Cable is the optimal connection cable for ISOBUS implements. This cable has been developed as an ideal connection solution and is suitable for the communication as well as the supply of electrics/electronics of the implement. Its robust construction includes an overmolded connector that provides an IP67 protection class, making the b-ISOBUS Cable well-suited for challenging environments. It is available in various lengths and wire cross-sections. The shielded design ensures reduced susceptibility to external interferences, making the b-ISOBUS Cable a reliable choice for agricultural applications.
b-ISOBUS Cable
Key Features
Overmolded connector
- Highers the protection class to IP67
- Deposit for the cover plate of the socket
- Captive predective cover
No cable manufacture necessary
yThe insert molded cable is available in different variants and lengths and eliminates error-prone cable manufacture
Fitting to the ambient conditions
Robust cable coating (PUR) against Oil, UV or greases
Various wire cross sections
Cross sections of 6, 10 or 16 mm² for the supply of electronics on the implement
Shielded Cable
Reduced susceptibility to influences
b-ISOBUS Cable
Technical details
b-ISOBUS Cable
|
|
|---|---|
Current rating |
6 / 10 / 16mm²: 25 / 35 / 60 A at 40°C 2,5mm²: 15 A at 40°C 0,5mm²: 5 A at 40°C |
Protection class |
IP 67, in mated condition |
Ambient temperature connector |
-40°C … +85°C |
Ambient temperature cable |
fixed -40°C … +85°C moved -20°C … +85°C |
Mating cycles |
>100 |
Wire cross section |
2 x 6 / 10 / 16mm² 2 x 2,5mm² 4 x 0,5mm² |
Housing |
Deutsch HDP26-24-91SE-L015, black |
Complete your setup
Order information
Order information b-ISOBUS Cable
| Name | Description |
| B12093-ISO-001-0500 | ISOBUS-Cable – Socket 5m TPE-U(PUR) (4×0,5 / 2×2,5 / 2×6.0mm²) open end |
| B12093-ISO-001-1000 | ISOBUS-Cable – Socket 10m TPE-U(PUR) (4×0,5 / 2×2,5 / 2×6.0mm²) open end |
| B12093-ISO-011-0500 | ISOBUS-Cable – Socket 5m TPE-U(PUR) (4×0,5 / 2×2,5 / 2×10.0mm²) open end |
| B12093-ISO-011-1000 | ISOBUS-Cable – Socket 10m TPE-U(PUR) (4×0,5 / 2×2,5 / 2×10.0mm²) open end |
| B12093-ISO-0Z1–XXXX | X cable length in cm – Z cross section of power wire (0 = 2×6.0mm² – Standard, 1 = 2×10.0mm², 2 = 2x16mm²) |
