NETLion
Automotive Ethernet Converter & TAP NETLion
development tool with speeds of 100BASE-T to 10GBASE-T
Whether software and hardware development on the control unit, measuring data in the vehicle, data distribution, data analysis in the lab or flashing control units – the Automotive Ethernet TAP (Test Access Point) and media converter NETLion offers the optimal solution for all your requirements. Thanks to its precise data conversion, it connects the world of automotive Ethernet with that of standard Ethernet, making it an indispensable tool in development.
Why choose NETLion?
Key Features
2-in-1 device
In media converter mode, the device converts up to two BASE-T1 signals to Standard PC Ethernet. In the operating mode Network TAP (Test Access Point), data can be decoupled from both transmission directions and read out separately from each other.
Versatile use
The Automotive Ethernet Tool offers you flexible solutions for different industries and application areas. In addition to the automotive field, the NETLion can also be used in industrial and agricultural environments, e.g., as a development tool for high-speed ISOBUS. The power supply and temperature range are designed to withstand harsh environments. Therefore, the NETLion was not only developed for use in the laboratory but also for use in the automotive environment.
Reliable data
Thanks to Ethernet Layer 1 technology, the data streams are not being touched or altered during the decoupling process. The NETLion impresses with real-time transmission and a low and well-defined latency.
Which NETLion is right for you?
Base System

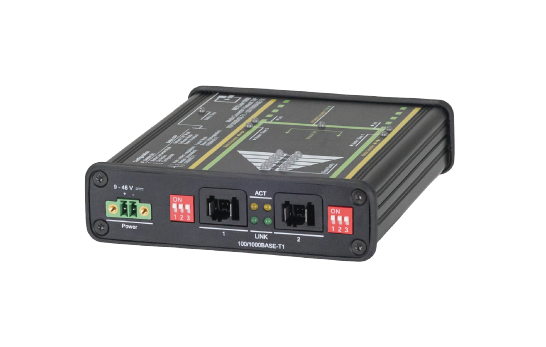

NETLion 1000
|
NETLion 10G
|
NETLion BR (on request)
|
|
|---|---|---|---|
Automotive Ethernet |
2x 100BASE-T1 / 1000BASE-T1 (IEEE 802.3bw / 802.3bp) |
2x 2.5 / 5 / 10GBASE-T1 (IEEE 802.3ch) |
2x 100BASE-T1 (IEEE 802.3bw) |
Standard Ethernet |
2x 100BASE-TX / 1000BASE-T (IEEE 802.3 Clause 24 / 802.3 Clause 40) |
2x 2.5 / 5 / 10GBASE-T (IEEE 802.3an / 802.3bz) |
2x 100BASE-TX (IEEE 802.3 Clause 24) |
MGMT Port Ethernet |
|
|
|
USB |
|
|
|
Operating Temperature |
-40 °C to +75 °C |
-25 °C to +70 °C |
-40 °C to +75 °C |
Supply Voltage |
9 – 48 V |
9 – 32 V |
8 – 32 V |
Maximum Electrical Current |
1 A (9 V) |
1,67 A (9V) |
0,75 A (8 V) |
IP Protection Class |
IP20 |
IP20 |
IP20 |
Housing |
127 mm (w) 26 mm (h) 105 mm (d)
290 g |
121 mm (w) 50 mm (h) 110 mm (d)
560 g |
104 mm (w) 26 mm (h) 105 mm (d)
250 g |
Approvals |
CE, FCC, VCCI, KC, RoHS, REACH |
CE, FCC, VCCI, ICES, KC, RoHS, REACH |
