Description
DATALynx ATX4

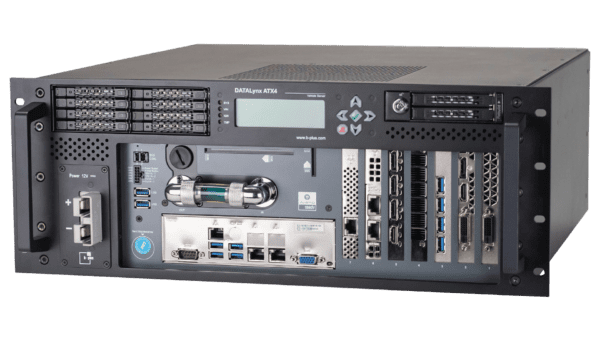

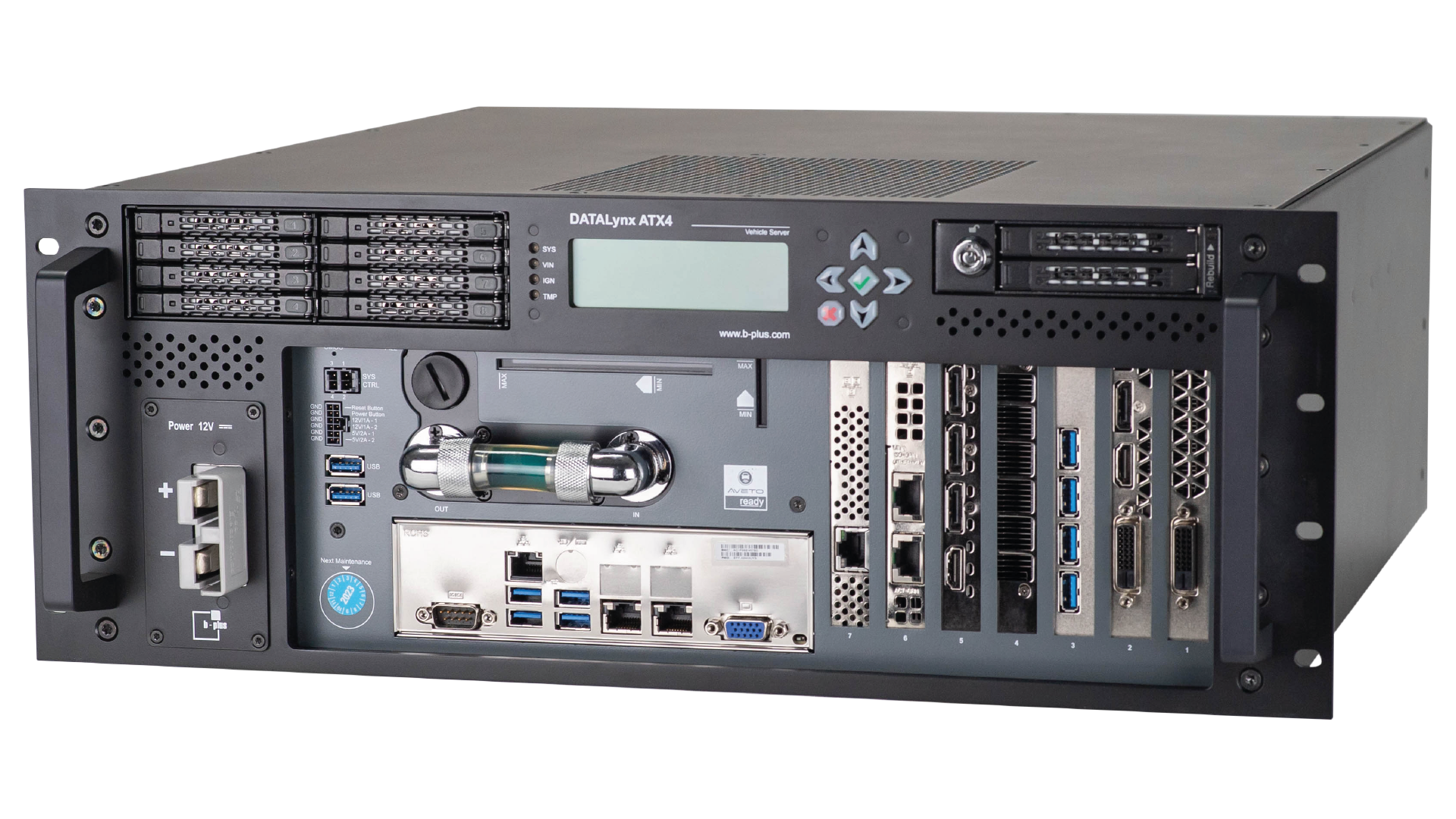

19” Car Server DATALynx ATX4
powerful high performance computer
for use in the automotive area
The b-plus series DATALynx ATX is a high performance computing solution that achieves the next level of computing power in the vehicle. With a completely newly developed power supply and an extremely powerful and fully integrated liquid cooling system, the DATALynx ATX enables maximum CPU and GPU performance, making it ideal for HPC tasks in the field of autonomous driving, AI algorithms, deep learning and realtime applications. Thanks to its high-quality components and robust design, it offers reliable computing power and stable performance even in demanding environments.
Why choose DATALynx ATX4?
Key Features
Ultimate GPU performance for your AI
Our solution enables you to create a scalable system design – from a multi-I/O recording solution to a high-performance Deep Learning and AI setup. Whether you want to capture large amounts of data, train complex models, or implement sophisticated AI algorithms, our system combined with powerful GPUs delivers the necessary graphics performance to handle even the most demanding AI tasks.
XTSS Time Synchronization
Modular and expandable system
Thanks to many flexible add-ons for additional interfaces and various powerful storage solutions, you can configure the DATALynx according to your requirements and your use case. The modular system allows you to expand and adapt your setup as needed. This way, we offer you a future-proof investment.
Which DATALynx is right for you?
Base system
Generation EP5
|
Generation EP3
|
|
|---|---|---|
Processor and Main Memory |
AMD EPYC™ 9004 & 9005 ASRock GENOAD8X-2T/BCM 8x 16-128GB DDR5-5600+ |
AMD EPYC™ 7003 Supermicro H12SSL-i 8x 8-64GB DDR4-3200 |
Interfaces |
2x 10GBase-T 4x USB 3.2 Gen1 7x PCIe 5.0 x16 4x MCIO-4i 1x M.2 |
2x 1000Base-T 6x USB 3.0 5x PCIe 4.0 x16 2x PCIe 4.0 x8 |
Management |
1x LAN 1x VGA 1x Serial |
1x LAN 1x VGA 1x Serial |
Time Synchronization |
GPS IEEE 802.1AS-2020 |
GPS IEEE 802.1AS-2020 |
Software Support |
Linux 64 Windows 11 IoT Enterprise |
Linux 64 Windows 10 IoT Enterprise |
Power Supply |
6 – 32 V DC 9 – 32 V permanent 1250 W
100 – 127 V AC 60 Hz 1000 W
200 – 240 V AC 50 Hz 1600 W |
6 – 32 V DC 9 – 32 V permanent 1250 W
100 – 127 V AC 60 Hz 1000 W
200 – 240 V AC 50 Hz 1600 W |
Operating Temperature |
liquid cooled
-10 °C to +60 °C (DC) 0 °C to +40 °C (AC) |
liquid cooled
-10 °C to +60 °C (DC) 0 °C to +40 °C (AC) |
Housing |
4U 19”
442 mm (w) 176 mm (h) 475 mm (d) |
4U 19”
442 mm (w) 176 mm (h) 475 mm (d) |
Complete your setup
Order information
Order information DATALynx ATX4
| Name | Order number |
| DATALynx ATX4 – EP3 (AMD Epyc 7002/7003) | B16047-DLY-EP3-xxxx |
| DATALynx ATX4 – EP5 (AMD Epyc 9004/9005) | B16047-DLY-EP5-xxxx |
Big Data? No problem!
xSTORAGE
x8 STORAGE – Gen4 E1.S
|
x8 STORAGE – Gen3 E1.S
|
BRICK2 STORAGE
|
|
|---|---|---|---|
PCI Express |
PCIe 4.0 x8 NVMe JBoF |
PCIe 3.0 x8 NVMe JBoF |
PCIe 3.0 x8 SATA RAID |
SSD |
8 x E1.S NVMe SSD, passive cooling |
8 x E1.S NVMe SSD, passive cooling |
8 x SATA SSD, passive cooling |
Performance |
96 Gbit/s @ATX4 PCIe4 48 Gbit/s @ATX4 PCIe3 32 Gbit/s @BRICK2 |
48 Gbit/s @ATX4 32 Gbit/s @BRICK2 |
24 Gbit/s @ATX4 24 Gbit/s @BRICK2 |
Storage Capacity |
30 TB 60 TB 120 TB |
15 TB 30 TB 60 TB 120 TB |
8 TB 16 TB 32 TB |
Hot Plug |
|
|
|
Encryption |
|
|
|
Typical Power Consumption |
99 – 117 W |
55 – 91 W |
up to 50 W |
Operating Temperature@ max. performance |
-10 °C to +60 °C (Standard) -20 °C to +70 °C (Extended) |
-10 °C to +60 °C (Standard) -30 °C to +70 °C (Extended) |
-10 °C to +50 °C (EVO) -20 °C to +60 °C (EXT) |
Housing |
Solid aluminum housing
280 mm (w) 22 mm (h) 248 mm (d) |
Solid aluminum housing
280 mm (w) 22 mm (h) 248 mm (d) |
Solid aluminum housing
280 mm (w) 22 mm (h) 248 mm (d) |
