Capture Module 1000 High

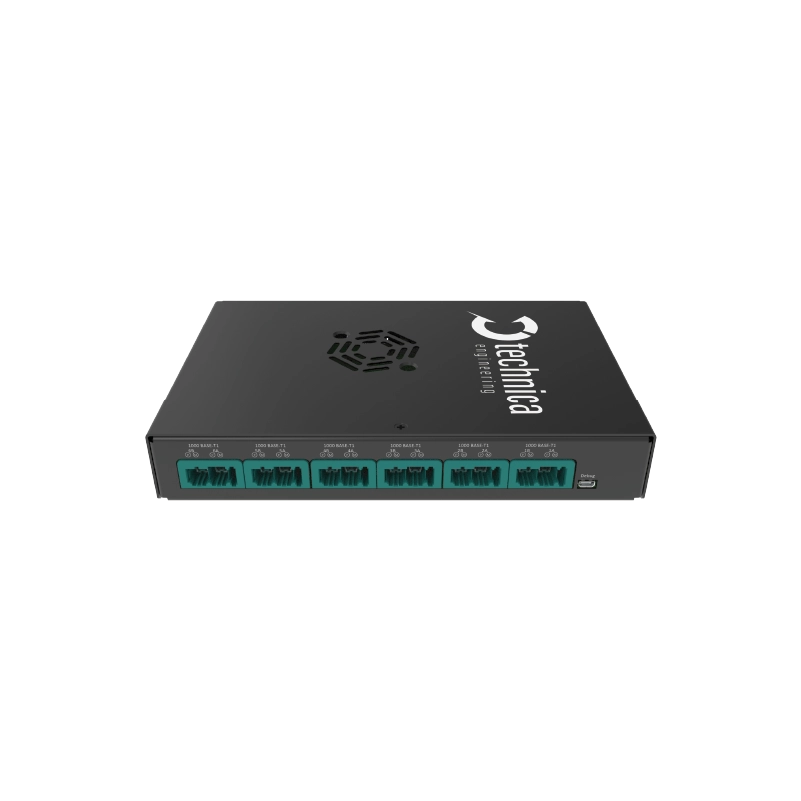

The Capture Module (CM) 1000 High from Technica Engineering is an active tap device designed to capture 100/1000Base-T1 traffic of up to 6 point-to-point 100/1000BASE-T1 connections (12 ports in total). The received data is captured and HW timestamped without causing interference on the in-vehicle-network (IVN) and sent out to the data sink (e.g. data logger or PC).
About Product
Standardized logging protocol
The Capture Module encapsulates logged frames into an ethernet frame adding valuable information such as the HW timestamp, Interface ID, Counter and more in a standardized logging protocol header.
Scalable setups
Several Capture Modules can be combined and used together in the same measurement network. The built-in time synchronization feature allows to synchronize the whole measurement network with the same time base. This makes the Capture Modules very scalable and allows to add other IVN technologies to the measurement setup.
Optimized logging
Startup time is crucial in an in-vehicle-network. Therefore, the Capture Modules are developed to provide an optimized startup time to be ready to log before the ECUs are up and send data. In addition to that, the Capture Module is equipped with an internal buffer to store the first frames (sent from the ECUs), even if the data sink is not yet ready. As soon as the data sink is up and ready to receive data, all the stored data will be sent out. With the packetization and output traffic shaping feature the Capture Module can adjust the size of the logging frames and have the possibility to maintain a consistent data flow (to the logger or the test PC). This way it actively prevents forwarding of bursts. The combination of these features ensures that no frames are lost.
Configuration
The CM offers a flexible and user-friendly configuration through its built-in web server. The device webpage can be easily accessed via a standard web browser. In addition, the possibility to import/export a configuration makes it even more convenient.
Order Information
| Name | Article number product | Article number cable set* |
|---|---|---|
| Capture Module 1000 High MATEnet | TE-1176 | KS-1176 |
| Capture Module 1000 High H-MTD | TE-1177 | KS-1177 |
Application Areas
Capture Modules are designed to be used in different environments such as in the car, on a development desk or in testbenches. In order to cover these areas as best as possible, the devices allow continuous operation and a wide temperature range.
Use Case
Order Information
| Name | Article number product | Article number cable set* |
|---|---|---|
| Capture Module 1000 High MATEnet | TE-1176 | KS-1176 |
| Capture Module 1000 High H-MTD | TE-1177 | KS-1177 |
Technical Details
| Operating Temperature | -40°C to 75°C |
| Supply Voltage | 6.5V to 24V DC (typ. 12V DC) |
| Power consumption | 25 to 36 Watt |
| IP Protection Class | IP 20 |
| Housing Dimensions | 186 mm (W), 130,4 mm (L), 32,5 mm (H) |
| Weight | 0.8 kg (approx.) |

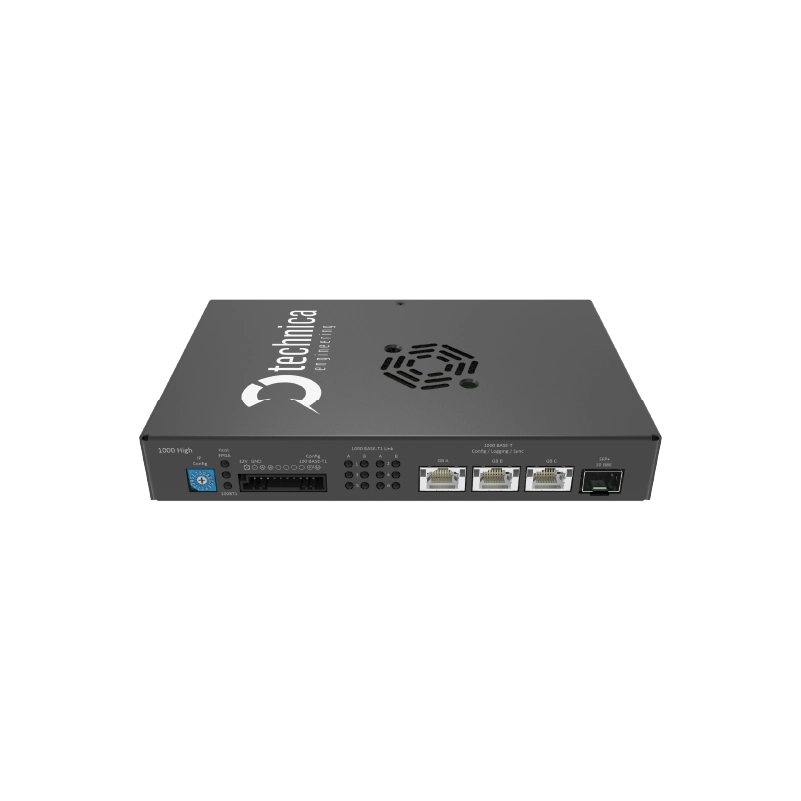

| Interfaces | 12x 100/1000BASE-T1 (MATEnet or H-MTD) 3x 1000BASE-T (RJ-45) for Config, Logging, Sync 1x 10Gbit Ethernet (SFP+) for Logging, Sync 1x 100BASE-T1 (MQS) for Config 2x Wake in/out (MQS) |
| Phy (in-vehicle) | MARVELL 88Q2112-A2 |
Other Information
Features of the Capture Module 1000 High
| Device Features | Configuration Webpage |
| Wake-/Sleep | |
| Import-/Export of Configurations | |
| Status LEDs | |
| TECMP / ASAM CMP | |
| Status Messages | |
| Manual IP Configuration via Rotary Switch | |
| Optimized Startup + Startup Buffer | |
| Cascading | |
| Hardware Timestamping with nanoseconds resolution | |
| Time Synchronization (gPTP/802.1AS-2011 AVnu profile or PTPv2 subset) | |
| Packetization | |
| Output Traffic Shaping | |
| Basic + Advanced Filtering | |
| Sync + Link Events | |
| Transparency Mode | |
| Traffic Injection |
