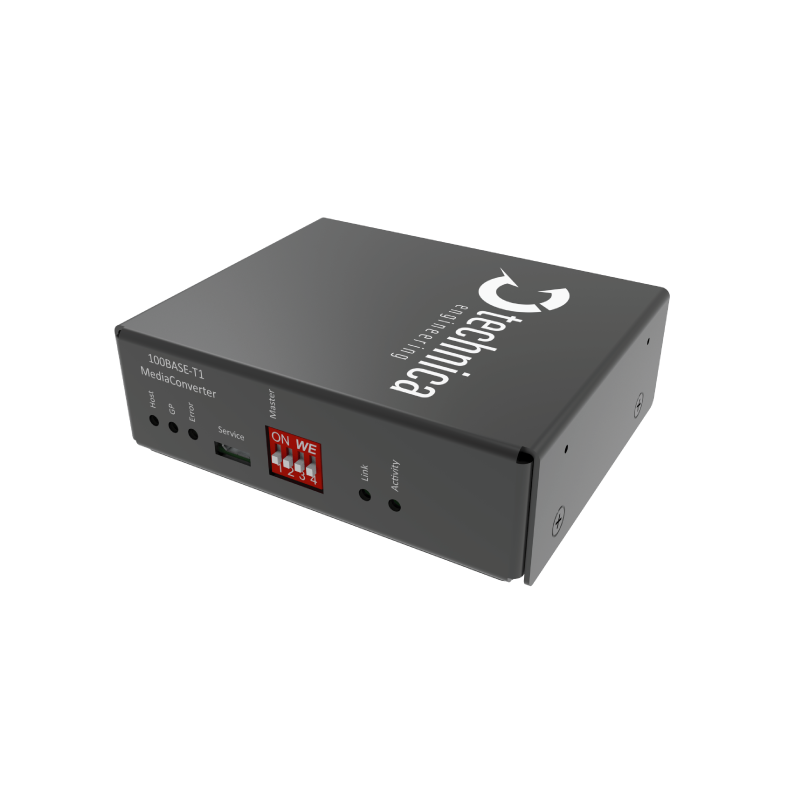

MEDIACONVERTER 100BASE-T1
MEDIA CONVERTERS
About Product
Conversion
MediaConverters transmit data frames directly from the physical layer 100BASE-T1 and the physical layer 100BASE-TX, with a deterministic and constant delay of approximately 2 microseconds.
Configuration
MediaConverters can be statically configured for standalone operation but also controlled remotely for dynamic operation.

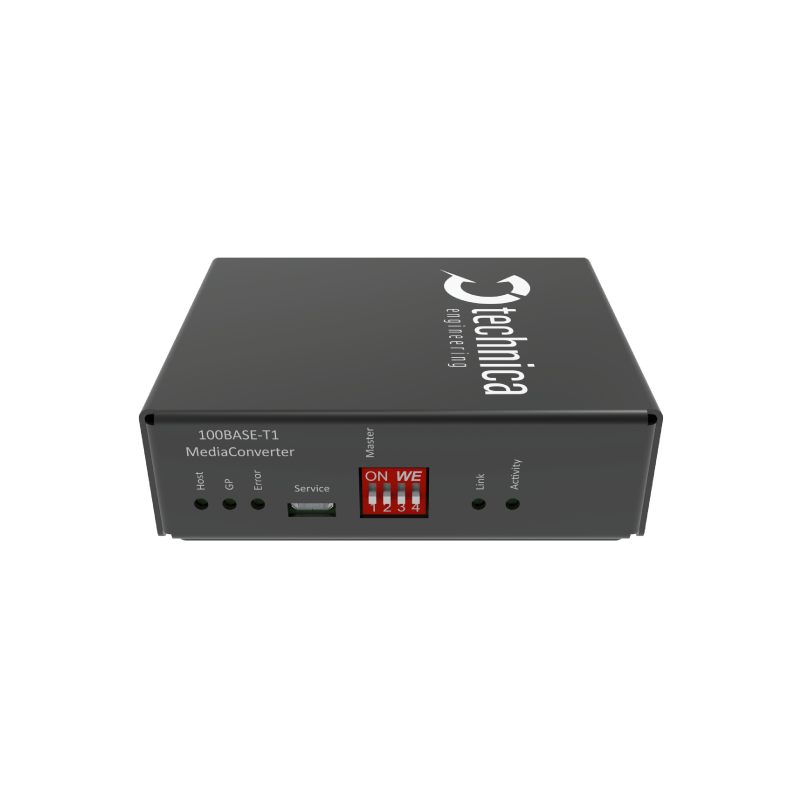

Standalone operation is defined via 4x DIP switches for basic configuration of the device:
DIP Switch 1: Master/Slave
DIP Switch 2: not used
DIP Switch 3: not used
DIP Switch 4: Frame Generator
For advanced use cases, to control remotely the operation or additional debugging purposes, there is a serial interface (console), which is accessible through micro USB-B connector. This interface enables the users to read TX/RX register counters, SQI values of the channels, CRC errors, and other information as well as dynamically change the MediaConverters configuration overriding DIP switches. It can also be used for Firmware updates of the device.
Application Areas
MediaConverters of Technica Engineering can be used on the development desk and even in harsh environments. With its robust design and ease of use, it’s perfect for integration into test racks, rapid prototyping, and lab setups. Whether you’re testing for data transmission, link quality, or interfacing between Ethernet speed, this converter offers a reliable, efficient solution for automotive Ethernet applications.
Use Case
Order Information
| Name | Article number product | Article number cable set* |
|---|---|---|
| MediaConverter 100BASE-T1 | TE-1420 | KS-1420 |
Technical Details
| Operating Temperature | -40 °C to +85 °C |
| Supply Voltage | 6 V to 30 V DC (typ. 12 V) |
| Connector | MQS 6 pin (plug counterpart BU-GEH 6P) |
| Power consumption | 2 W |
| IP Protection Class | IP20 |
| Housing Dimensions | 89 mm (W), 72 mm (L), 28 mm (H) |
| Weight | 0,2 kg (approx..) |

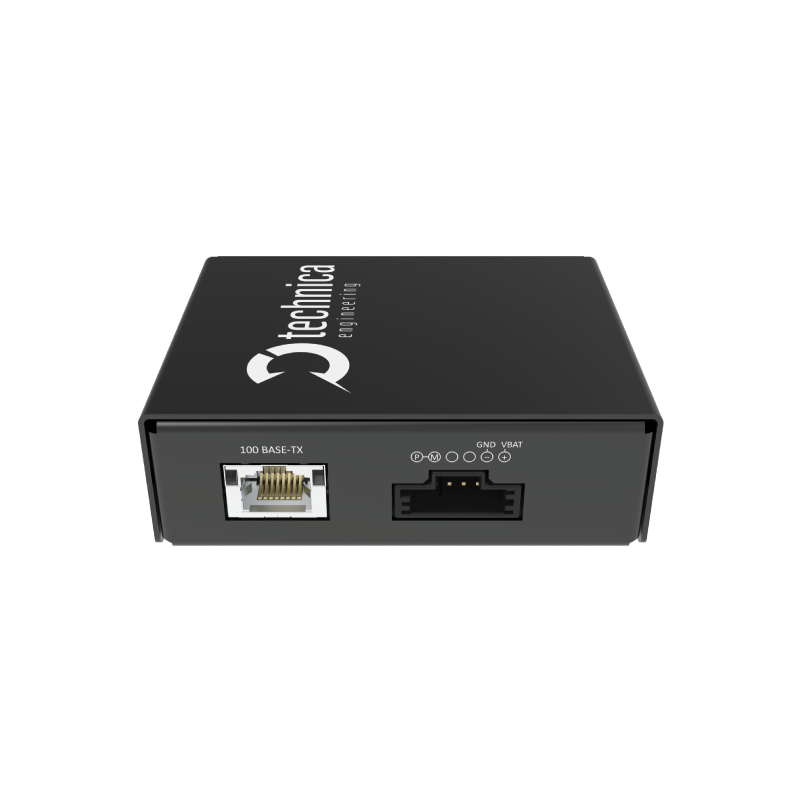

| Interfaces | 1x 100BASE-T1 (MQS) 1x 100BASE-TX (RJ45) Micro USB-B |
Other Information
| Characteristics of MediaConverter 100BASE-T1 | |
| Conversion from TX to T1 | 100BASE-T1 |
| Ports/Connectors | RJ-45 Ethernet port |
| MQS connector | |
| Micro USB-B port | |
| Configuration method | DIP Switches |
| Console (serial Interface) | |
| Features | Frame generator |
| Status LEDs | |
| Diagnostics | |
| Firmware updates | |
| Transceiver | Marvell 88Q2112 A2 |
